Emergency Stop Function

The emergency stop function allows users to stop the inverter immediately in case of an emergency.

Note: The emergency stop function is available for SUNGROW inverters only.
Table1 Emergency Stop Modes
Mode Description
OFF Emergency stop control is disabled.
Stop Inverter When emergency stop is triggered, the inverter enters the emergency stop state.
Stop Inverter and Trip Battery When triggered, the inverter stops exporting power to the grid, and the battery ceases all interactions with the inverter or grid, neither charging nor discharging. Both the inverter and battery enter standby mode.

Procedure

  1. Navigate to DI Power Control page.

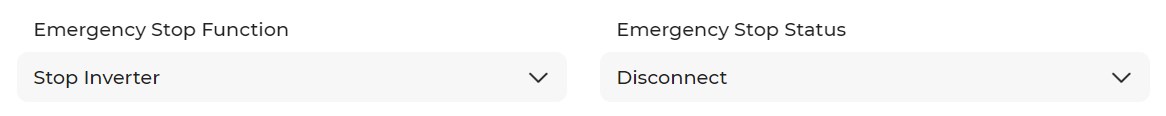

  2. In the Emergency Stop Function drop-down list, select OFF to disable the function or choose a desired emergency stop mode to enable it.
  3. If Stop Inverter or Stop Inverter and Trip Battery is selected, select a trigger condition in the drop-down list of Emergency Stop Status.
    • Disconnect: Emergency stop will be triggered when DI opens.
    • Closed: Emergency stop will be triggered when DI closes.
  4. Click Apply Settings.
