Complete Plant Information

Complete the basic plant information.

Parameter

Description

* Plant name

Enter the plant name. If you want to change the plant's name after it has been created, refer to Plant Information Setting.

* Plant type

Select a plant type according to the actual situation.

PV installed power (kWp)

The sum of the rated power of devices that have been installed in the plant.

* Country/region

Select the country/region where the plant is located.

* Time zone

This field will be completed automatically according to the country/region you have selected.

* Detailed address

  • Manual setting: Enter the location of the plant in the input box.

  • Auto acquisition: Click to get the current location automatically.

* Grid connection type

Select a plant type according to the actual situation.

Grid connection date

Select the date when the devices in the plant are connected to the grid.

Postal code

The postal code of the place where the plant is located.

Plant image

You may upload a photo of the plant.

Owner's phone

Enter a new owner phone number or an existing owner phone number in iSolarCloud. When the plant is successfully created, iSolarCloud system will automatically send the account information to the new owner by SMS.

* Energy storage solution

This field is required when Plant type is set to Microgrid. You can select DC coupling or AC coupling.

NMI

You can set this parameter when Country/region is set to “Australia”.

Note:

Those marked with * are required fields.

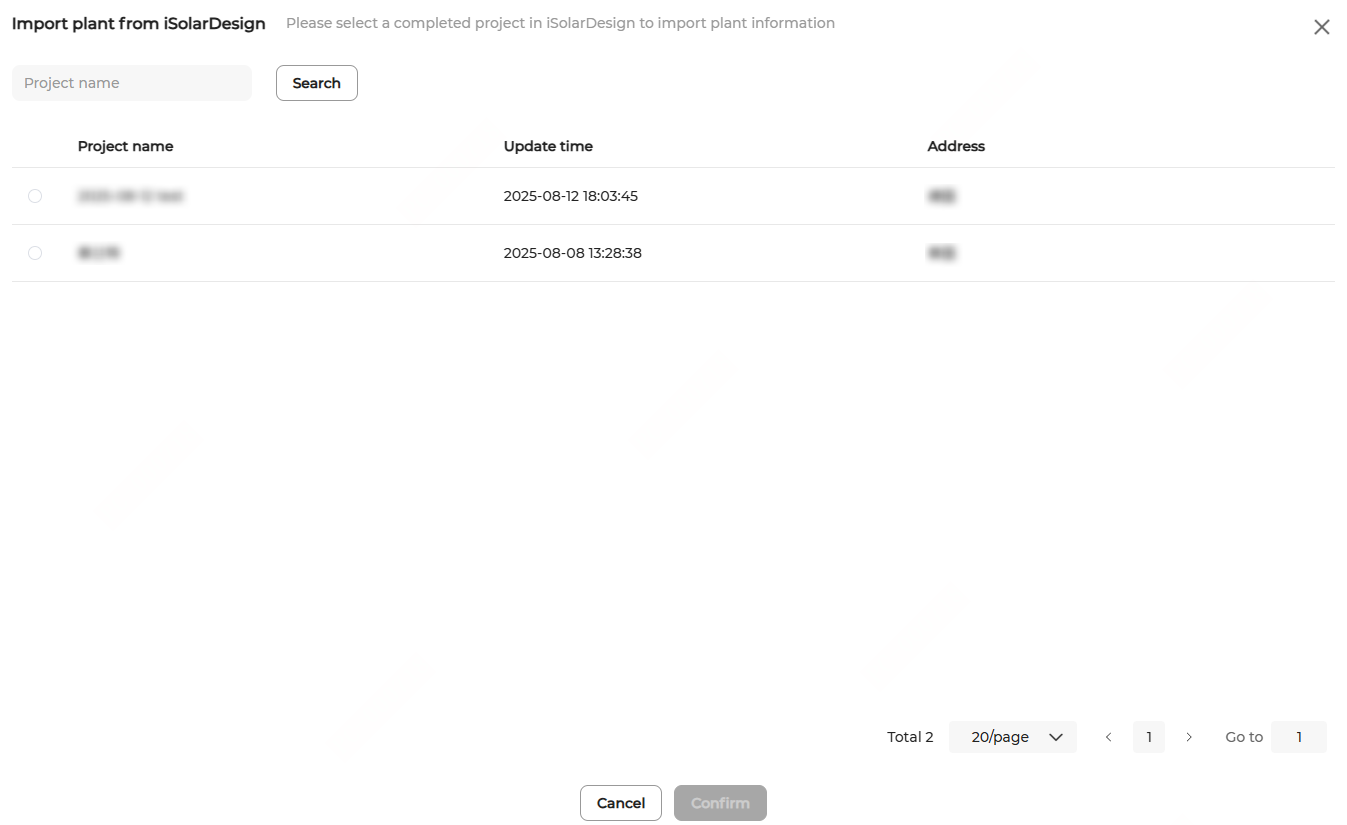

Note: Click Import from iSolarDesign to import projects that have been completed in iSolarDesign.
After completing plant information, click Next. If the project includes a physical layout, you can import the layout diagram.
